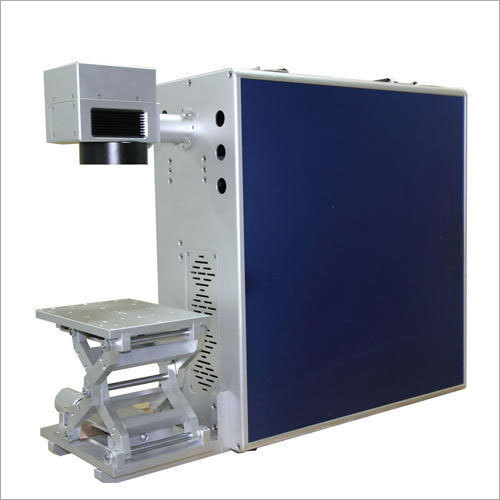

Send InquiryHigh Quality Laser Marking Machine
High Quality Laser Marking Machine Specification
- Marking Area
- 110 mm x 110 mm / 200 mm x 200 mm (Optional)
- Marking Speed
- 7000 mm/s
- Condition
- New
- Laser Type
- Fiber Laser
- CNC
- Yes
- Cooling Mode
- Air Cooling
- Control Software
- EZCAD
- Accuracy
- 0.01 mm
- Power
- 20W / 30W / 50W (Optional)
- Dimensions
- 800 mm x 650 mm x 1450 mm
About High Quality Laser Marking Machine
High Quality Laser Marking Machine is a perfect solution of marking varied multiple shapes and trademark on gold metal items. This machine also ensures elegant looks of the gold items that help to increase their demand in market. Equipped with shape and design dies, this type of machine marks and does cuts on gold by means of approved laser technology. It is well featured with voltage fluctuations resistance operating system to ensure its stable performance and high efficiency. The High Quality Laser Marking Machine is also designed with auto feeding system for quick production ratings.
Small Size :
- LM-W20 Mini Laser Marking Machine based on convenient to carry, the whole weight is just 40Kg, which fit at small space
Low Operating Cost :
- LM-W20 Mini Laser Marking Machine combines the most advance technology with the most sophisticated parts which are designed to reduce the power loss. High photoelectric conversion efficiency not only improves the work efficient but reduces operating cost.
Easy to operating :
- LM-W20 Mini Laser Marking easy to operate just need to control the computer software. You can quickly modify the processing content which greatly improves the work efficiency.
Easy to operating :
- LM-W20 Mini Laser Marking frequency almost up to 80 khz extremely fast marking speed to come true its function.
Technical Specification :
- Model : LM-W20
- Type : Fiber Series
- Laser Marking Parameter :
- Laser : 20W the 3rd Generation optical Fiber
- Laser Adjustable Frequency : 20KHZ - 80KHZ
- Laser Wavelength : 1064nm
- Galvanometer Parameters :
- Max Processing Speed : 7000mm/s
- Re-positioning-accuracy : 0.003mm
- Best Resolution : 0.001mm
- Optical Output Characteristics :
- Scope of Marking : F=160mm 110 x 110mm
- Height of Minimum Character : 0.25mm
- Minimum Line Width : 0.010mm
- System Property Power :
- Supply : AC220V/50Hz 200W
- Working Environment : Temp. 0oC - 50oC Humidity : 5 % - 90 %
- Warranty : 18 Months Weight : 40Kg
Advanced Performance for Industrial Needs
This laser marking machine is engineered for high-speed and high-accuracy production with a robust fiber laser source. The marking area options (110x110 mm or 200x200 mm) and a remarkable marking speed of up to 7000 mm/s make it suitable for large-volume workflows. Thanks to its advanced EZCAD control software, it seamlessly integrates with Windows XP through Windows 10 systems for easy operation and setup.
Versatile Material Compatibility
Designed to handle a variety of materialsmetals, plastics, ABS, and ceramicsthis machine adapts to the evolving needs of diverse industries. Whether youre marking serial numbers on metal parts or logos on plastic housings, the precise output and crisp line widths ensure your finished product looks professional.
Durability and Ease of Use
The machine boasts a laser source lifespan of over 100,000 hours and air cooling for maintenance-free operation. Its manual or automatic focusing options enable fast changeovers between jobs, while the power supply supports both 110V and 220V contexts, ideal for manufacturers, traders, and suppliers in different Indian locales.
FAQs of High Quality Laser Marking Machine:
Q: How does the focus adjustment work on this laser marking machine?
A: This machine offers both manual and optional automatic focus methods. Manual focus allows precise control using the focusing mechanism, while the automatic feature (if selected) streamlines setup for consistent marking quality across different product types.Q: What types of materials can be marked with this machine?
A: The laser marking machine is engineered to mark a variety of materials, including metals, plastics, ABS, and ceramics. Its fine line width and marking precision make it suitable for delicate and detailed work on a broad spectrum of substrates.Q: When should I consider using different power options (20W/30W/50W)?
A: The power level you select should depend on the type and thickness of the material and the marking speed you require. Higher power levels (30W, 50W) allow faster marking on harder or thicker materials, while lower power is ideal for lighter marking applications or thinner materials.Q: Where can this machine be effectively installed and operated?
A: This laser marking machine is suitable for installation in workshops, factories, or production lines across India. It operates reliably within a temperature range of 0C to 40C and can be connected to either 110V or 220V AC power supplies, fitting diverse industrial and commercial settings.Q: What is the process for preparing and transferring graphics for marking?
A: Simply prepare your design using supported formats such as AI, PLT, DXF, BMP, or JPG. The EZCAD software ensures seamless compatibility with Windows systems, allowing you to transfer and adjust designs with ease before initiating the laser marking process.Q: How does this machine benefit manufacturers and suppliers?
A: Manufacturers and suppliers benefit from the machines rapid marking speed, exceptional accuracy (0.01 mm), and longevity of operation. The versatility in material compatibility and ease of use translate to higher productivity, lower maintenance, and superior quality markings on a wide array of products.
