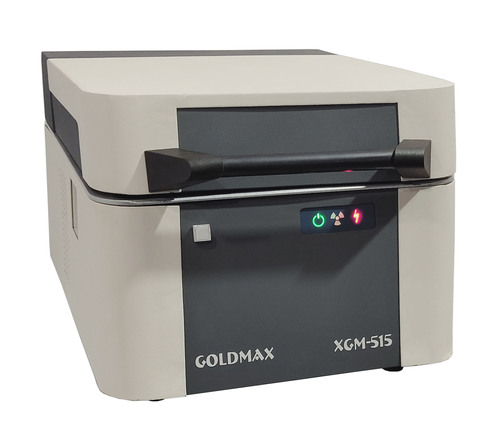

Send InquiryGoldmax X-Ray FSDD Gold Testing Machine
Goldmax X-Ray FSDD Gold Testing Machine Specification
- Accuracy
- 0.01% (or better)
- Measuring Range
- 0-100% (Metal Composition)
- Automation Grade
- Automatic
- Power Supply
- AC 220V, 50/60Hz
- Test Range
- 1 mg to 1 kg
- Frequency
- 50/60 Hz
- Number of Specimens
- Single Analysis Per Test
- Resolution
- 0.001g
- Equipment Type
- X-Ray Fluorescence (XRF) Analyser
- Display Type
- Large Color Touchscreen
- Mounting Type
- Bench Top
- Humidity
- 10-85% RH
- Response Time
- within 30 seconds
- Application
- Gold, Silver, Platinum, Precious Metal Purity Testing
- Specimen Size
- Up to 120 mm
- Port Size
- Standard USB/RS232
- Interface Type
- USB, RS232, Ethernet
- Temperature
- 10C 35C
- Features
- Non-destructive Testing, Fast Analysis, Automatic Calibration, High Precision
- Max Height
- 150 mm
- Operating Voltage
- 220V AC
- Usage
- Jewellery Shops, Assaying Labs, Banks
- Capacity
- Up to 1 kg
- Machine Weight
- 45 Kg
- Test Speed
- Fast (Result in Seconds)
- Test Width
- 100 mm
- Test Stroke
- Up to 150 mm
- Control Mode
- Touchscreen Control
- X-Ray Tube
- High Stability, Long Life
- Radiation Safety
- Lead Shielded Sample Chamber
- Detector Type
- Silicon Drift Detector (SDD)
- Dimensions
- 465 mm x 375 mm x 295 mm
- Printer Support
- Built-in Thermal Printer (Optional)
- Calibration
- Auto Calibration with Reference Standards
- Data Storage
- Up to 100,000 Results
- Cooling Type
- Air Cooling
- Reporting
- Custom Report Generation with Print/Export Option
- Memory
- High-Capacity Internal Storage
- Software
- Intuitive Multi-language Interface
About Goldmax X-Ray FSDD Gold Testing Machine
Specification
| Dimensions | 425x550x310 mm (WxDxH) |
| Environment Temperature Range | 10 to 40 Degree Celsius |
| Frequency | 50 to 60 Hz |
| Power Supply | 110 to 230 V AC, Max 120 W, 110 to 230V AC, 50/60 Hz |
| Sample View | Color CCTV high resolution camera systems, Magnification between 20X |
| Wattage | Maximum 120 W |
| Weight | 35 Kg Approx |
| X Ray Detector | FSDD (Fast Silicon Drift Detector AMPTEK) |
| X Ray Tube | Micro-Focus tungsten tube with w-target |
| Resolution | Less than -122 eV FWHM resolution at 5.9 keV |
| High Voltage | Adjustable 50 kV |
| Usage/Application | Testing Center |
Advanced Purity Testing
The Goldmax X-Ray FSDD Gold Testing Machine leverages cutting-edge X-Ray Fluorescence (XRF) technology and a Silicon Drift Detector to achieve non-destructive, highly accurate precious metal analysis. Its engineered for fast, automatic calibration and provides results within 30 seconds. Its sturdy construction and user-friendly touchscreen control enable seamless operation in busy environments such as jewellery shops and assay labs.
Comprehensive Data Management
With built-in high-capacity storage, the Goldmax can securely store up to 100,000 test results. Users can generate custom reports, print them using an optional built-in thermal printer, or export data via USB, RS232, or Ethernet. These features make it easy to track and manage analysis records over time, catering to the needs of dealers, banks, and retailers.
Safety and Convenience
Safety remains paramount with the Goldmaxs lead-shielded chamber, ensuring user protection from radiation. The equipment operates efficiently with air cooling and supports a wide humidity and temperature range, making it highly adaptable for various Indian climates. Its compact, bench-top design maximizes workspace utility without compromising performance.
FAQs of Goldmax X-Ray FSDD Gold Testing Machine:
Q: How does the Goldmax X-Ray FSDD Gold Testing Machine determine the purity of precious metals?
A: The Goldmax employs X-Ray Fluorescence (XRF) technology, using a high-stability X-ray tube and a Silicon Drift Detector (SDD) to analyze the samples elemental composition. This delivers an accurate, non-destructive measurement of purity for metals such as gold, silver, and platinum.Q: What is the process for using this machine to test a jewellery sample?
A: Simply place the metal sample (up to 120 mm and 1 kg) into the lead-shielded chamber, set the required test parameters using the touchscreen interface, and initiate the test. The instrument auto-calibrates and provides results, including metal composition and purity, typically within 30 seconds.Q: When should the Goldmax be recalibrated, and is the calibration automated?
A: The Goldmax features automatic calibration using internal reference standards, ensuring consistent accuracy. Calibration occurs automatically as required by the machine, so manual intervention is rarely necessary.Q: Where can this machine be installed and what are its mounting requirements?
A: Designed as a bench-top unit, the Goldmax is suitable for installation in jewellery shops, assaying laboratories, banks, and trading offices. Ensure the location meets the environmental requirements (10C 35C, 10-85% RH) and has access to the specified AC power supply (220V, 50/60Hz).Q: What are the main benefits of using this XRF analyser for gold and precious metal testing?
A: Users benefit from rapid, highly accurate, and non-destructive analysis. The Goldmax offers automated operation, extensive data management, enhanced radiation safety, and customizable reporting, making it ideal for professionals in the jewellery, banking, and assaying industries.Q: How does the machine store test results and what are the reporting options?
A: The Goldmax has a high-capacity internal memory that can store up to 100,000 results. It allows users to generate custom test reports, print them (with the optional thermal printer), or export data via standard USB, RS232, or Ethernet connections.
